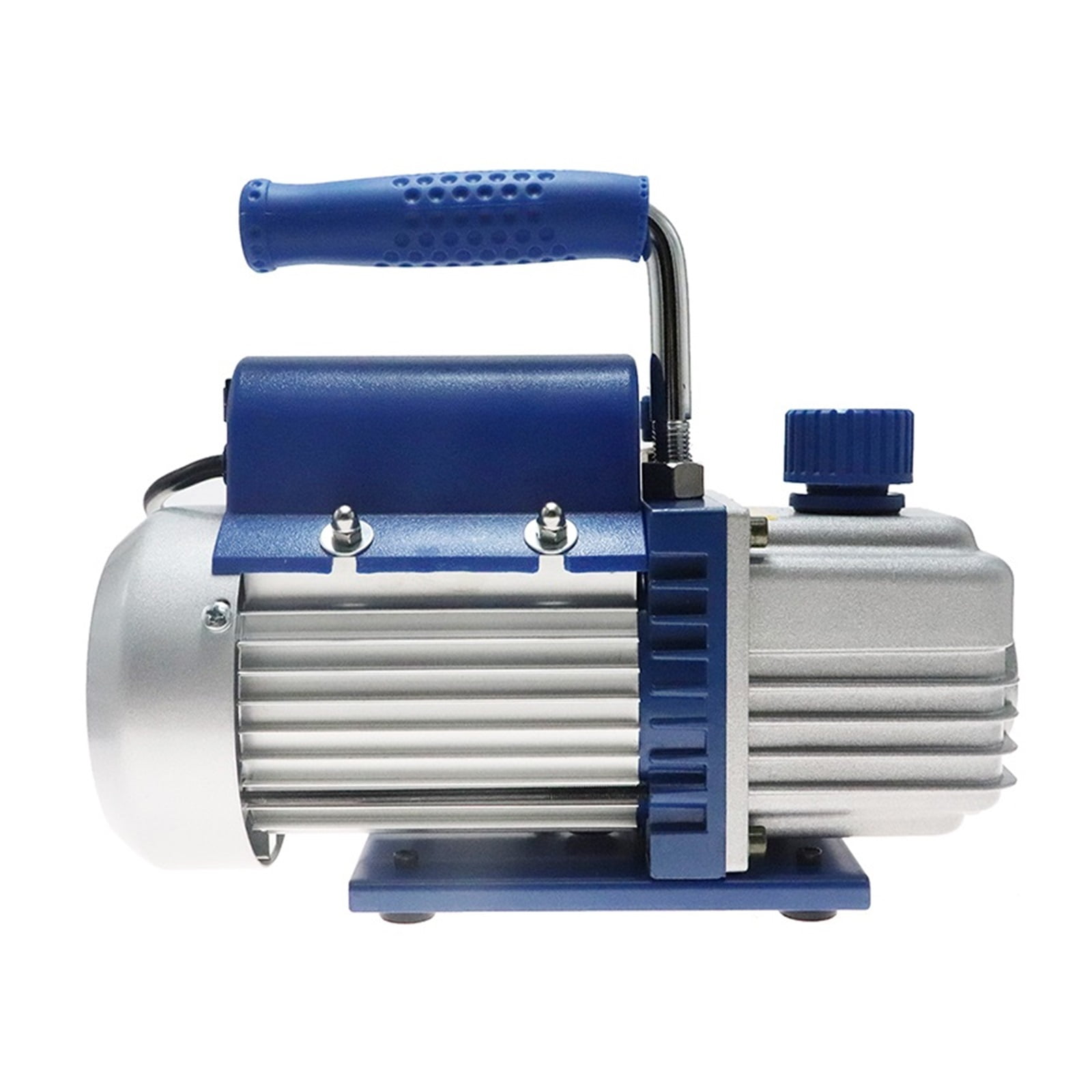

Refrigerant Vacuum Pump FY-1H-N Air Conditioning Vacuum Pump For 1P Air Conditioning Pump Vacuum R410 R134a R22

<p>Feature:</p><p>1. High ultimate vacuum, high pumping rate design, single-stage rotary vane design.</p><p>2. The pump body adopts the overall structure design.</p><p>3. Compulsory oil inlet structure design.</p><p>4. Anti-reflux structure design.</p><p>5. Gas ballast design to reduce the degree of condensation of suspicious vapor in the pumped gas in the pump.</p><p>6. Filter design, can filter oil mist moderately and reduce pollution.</p><p>7. The material of the whole machine adopts aluminum die-casting to reduce the weight of the whole machine.</p><p>8. The built-in protector of the motor makes the operation safer.</p><p></p><p>Product description:</p><p>Product name: Air Conditioning Vacuum Pump</p><p>Model: FY-1H-N</p><p>Material: Aluminum alloy</p><p>Pumping rate: 3.6m³/h</p><p>Ultimate pressure: 2pa</p><p>Motor power: 150W</p><p>Refueling amount: 150mL</p><p>Dimensions: 255mm X 105mm X 202mm</p><p>Inlet connection thread: 7/16"-20UNF</p><p>Scope of application: Uesd for basic equipment used to extract the gas from the sealed container to obtain a vacuum,suitable for pumping operations in refrigeration maintenance, printing machinery, vacuum packaging, gas analysis, thermoplastic molding and other industries.</p><p>It can also be used as a fore pump of various high vacuum equipment.</p><p>Suitable for 1P fixed frequency air conditioner.</p>

• 1. High ultimate vacuum, high pumping rate design, single-stage rotary vane design.
• 2. The pump body adopts the overall structure design.
• 3. Compulsory oil inlet structure design.
• 4. Anti-reflux structure design.
• 5. Gas ballast design to reduce the degree of condensation of suspicious vapor in the pumped gas in the pump.
